Why PicoSecond Laser is more popular than Nd:Yag Q-Switch for tattoo removal and pigmentation removal

Picosecond lasers have become more popular than traditional Q-switched Nd:YAG lasers for tattoo and pigmentation removal due to several key advantages:

1. Shorter Pulse Duration (Picoseconds vs. Nanoseconds)

  • Picosecond lasers deliver ultra-short pulses (1 picosecond = 0.001 nanoseconds), which break down ink and pigment particles more efficiently via photoacoustic and photomechanical effects.
  • Q-switched Nd:YAG lasers operate in nanoseconds, relying more on photothermal effects, which can lead to more collateral heat damage and require more sessions.

2. Better Efficacy on Stubborn Pigments

  • Picosecond lasers can shatter ink particles into smaller fragments than Q-switched lasers, making them easier for the body to clear.
  • They are particularly effective on difficult colors (e.g., blues, greens, and reds) and faster in clearing tattoos (often requiring fewer sessions).

3. Reduced Risk of Side Effects

  • Because picosecond lasers minimize heat diffusion, they reduce the risk of hyperpigmentation, hypopigmentation, and scarring compared to nanosecond lasers.
  • Less thermal damage means safer treatment for darker skin types (Fitzpatrick IV-VI).

4. Versatility in Treating Pigmentation Disorders

  • Picosecond lasers (e.g., PicoSure, PicoWay) are highly effective for melasma, sunspots, and post-inflammatory hyperpigmentation (PIH) due to their ability to target pigment without excessive heat.
  • Q-switched lasers can sometimes worsen melasma due to heat-induced inflammation.

5. Faster Results with Fewer Sessions

  • Studies show that picosecond lasers often clear tattoos in 2-4 sessions, whereas Q-switched lasers may require 6-12 sessions for similar results.

6. Advanced Wavelength Options

  • Picosecond lasers offer multiple wavelengths (e.g., 532nm, 755nm, 785nm, 1064nm) to target different ink colors more precisely.

While Q-switched Nd:YAG also has multiple wavelengths (532nm, 1064nm), it is less effective on certain colors like green and blue compared to picosecond 755nm (alexandrite) lasers.

3 (1)

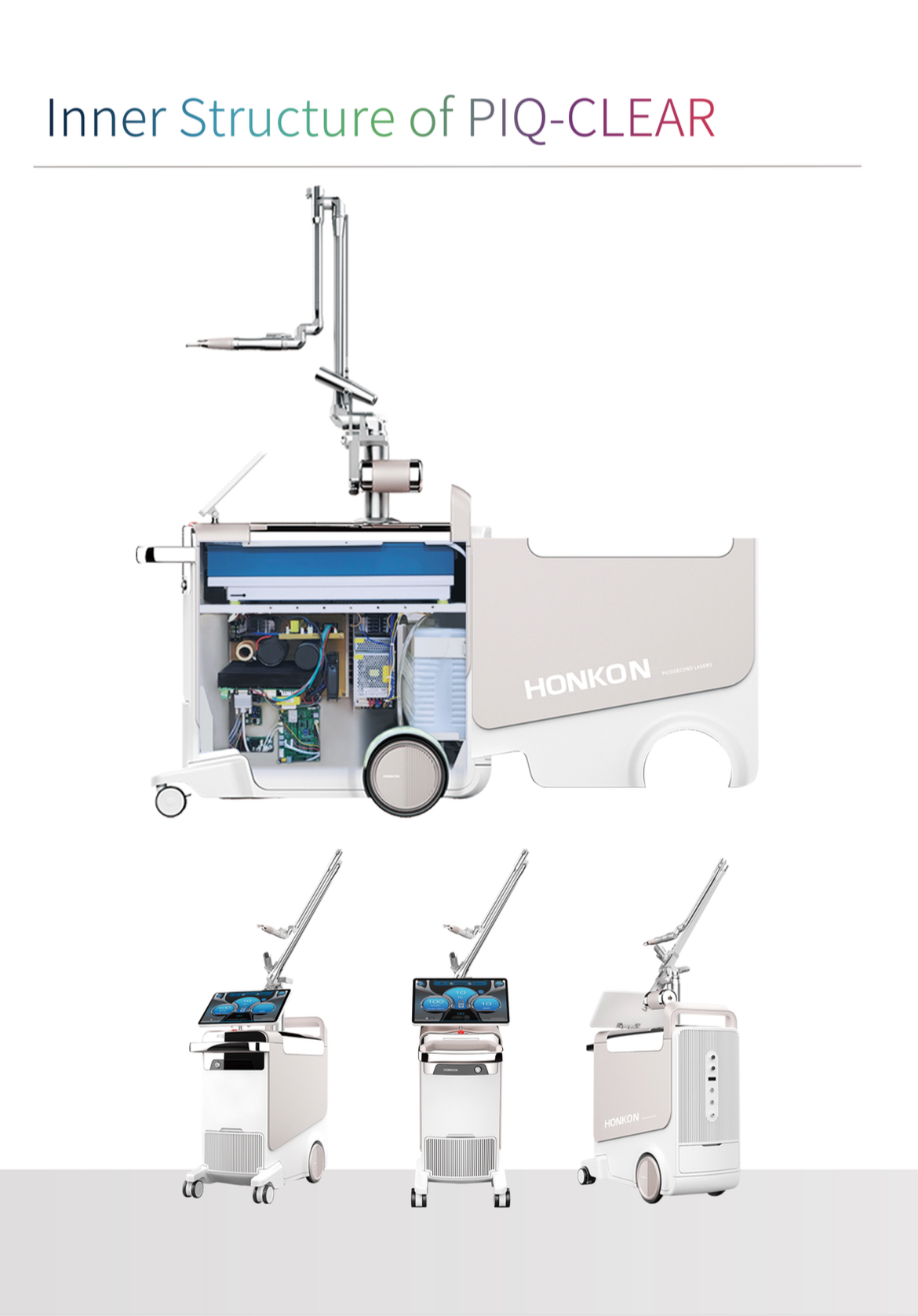

HONKON Pico Clear (1064YD02)Specifications

Parameter Specification
Wavelengths 1064nm, 532nm, 650nm (Optional), 585nm (Optional)
Spot Sizes 2mm ~ 10mm (10 adjustable sizes)
Pulse Shape True, single pulse (not a ‘pulse train’)
Pulse Width 300-350 picoseconds (ps)
Interface Stationary touchscreen
Peak Power Maximum 1.4 Gigawatts (GW)
Repetition Rate Up to 10 Hz (fast coverage)
Calibration Accurate calibration at the tissue level
